Deploy ML Models: Real-Time Alerts & Batch Screening

You trained a model on CSVs. Now you need to deploy it against FHIR data from EHRs. This tutorial shows how to bridge that gap with two production patterns: real-time CDS Hooks alerts and batch FHIR Gateway screening—both using the same model and a simple YAML schema that maps FHIR resources to your training features.

Check out the full working examples:

• Real-time CDS Hooks
• Batch FHIR Gateway

When to Use Each Pattern

Pattern	Trigger	Output	Best For
CDS Hooks	Clinician opens chart	Alert cards in EHR UI	Point-of-care decision support
FHIR Gateway	Scheduled job / API call	RiskAssessment resources	Population screening, quality measures

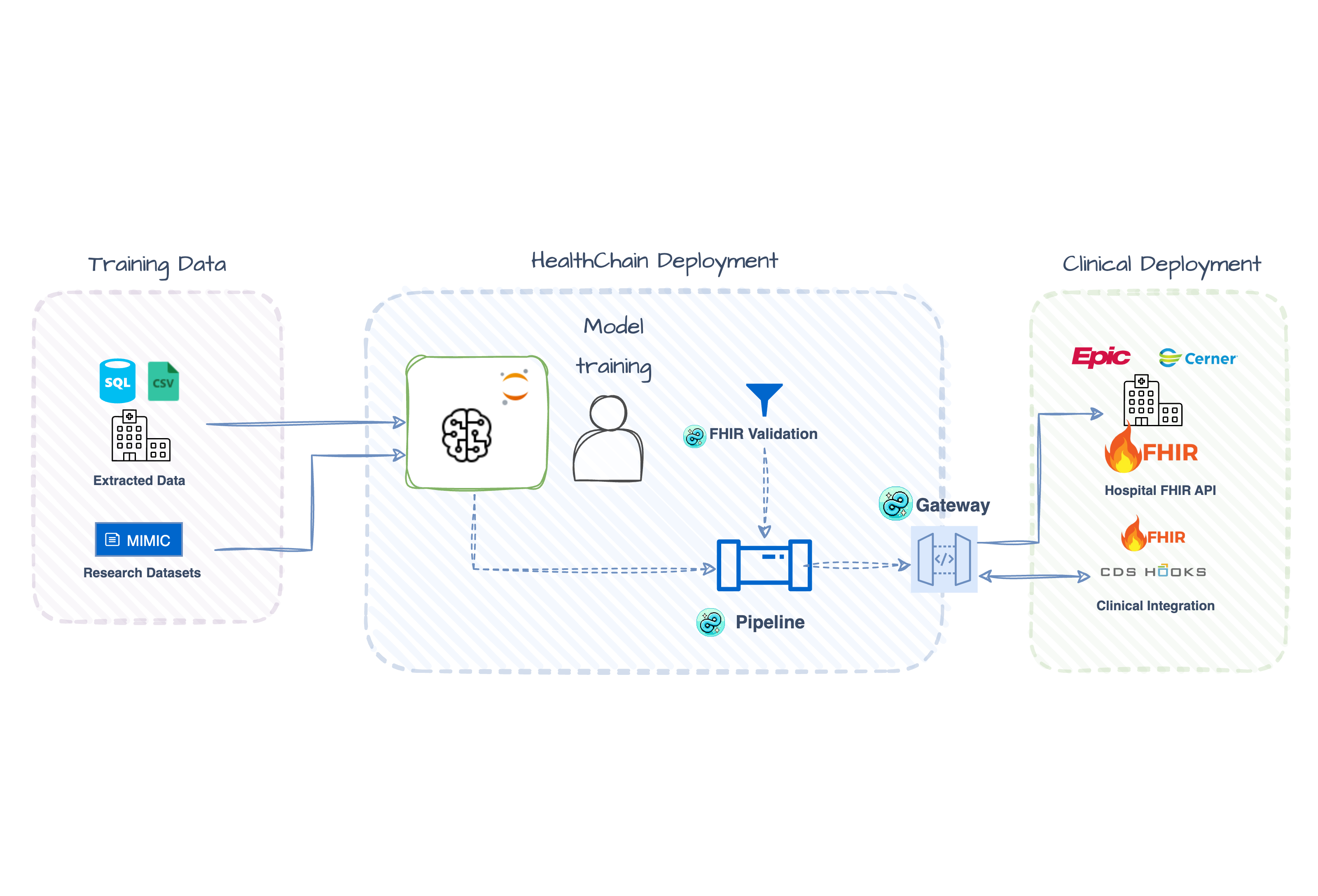

Both patterns share the same trained model and feature extraction—only the integration layer differs.

Setup

Install Dependencies

pip install healthchain joblib xgboost scikit-learn python-dotenv

Train the Model (or Bring Your Own)

The cookbook includes a training script that builds an XGBoost classifier from MIMIC-IV data. From the project root:

cd scripts
python sepsis_prediction_training.py

This script:

• Loads MIMIC-IV CSV tables (chartevents, labevents, patients, diagnoses)
• Extracts vitals features (heart rate, temperature, respiratory rate, WBC, lactate, creatinine, age, gender)
• Labels ICU stays with sepsis diagnoses (ICD-9/ICD-10)
• Trains Random Forest, XGBoost, and Logistic Regression models
• Saves the best model (by F1 score) to scripts/models/sepsis_model.pkl

After training, copy the model to the cookbook directory:

cp scripts/models/sepsis_model.pkl cookbook/models/

MIMIC-IV Demo Dataset

The training script uses the MIMIC-IV Clinical Database Demo (~50MB, freely downloadable). Set the path:

export MIMIC_CSV_PATH=/path/to/mimic-iv-clinical-database-demo-2.2

*This is a quick-start workflow for demo purposes. Full MIMIC requires credentialed access. Most researchers use BigQuery or a PostgreSQL database.

Using your own model? The pipeline is flexible—just save any scikit-learn-compatible model as a pickle with this structure:

import joblib

model_data = {
    "model": your_trained_model,  # Must have .predict_proba()
    "metadata": {
        "feature_names": ["heart_rate", "temperature", ...],
        "metrics": {"optimal_threshold": 0.5}
    }
}
joblib.dump(model_data, "cookbook/models/sepsis_model.pkl")

The pipeline will work with any model that implements predict_proba() - XGBoost, Random Forest, LightGBM, or even PyTorch/TensorFlow models wrapped with a sklearn-compatible interface.

Prepare Demo Patient Data

The two patterns have different data requirements:

Pattern	Data Source	What You Need
CDS Hooks	Local JSON files	Download pre-extracted patients (quick start)
FHIR Gateway	FHIR server	Upload patients to Medplum and get server-assigned IDs

CDS Hooks Only (Quick Start)FHIR Gateway (Full Setup)

Download pre-extracted patient bundles—these are already in the repo if you cloned it:

mkdir -p cookbook/data/mimic_demo_patients
cd cookbook/data/mimic_demo_patients
wget https://github.com/dotimplement/HealthChain/raw/main/cookbook/data/mimic_demo_patients/high_risk_patient.json
wget https://github.com/dotimplement/HealthChain/raw/main/cookbook/data/mimic_demo_patients/moderate_risk_patient.json
wget https://github.com/dotimplement/HealthChain/raw/main/cookbook/data/mimic_demo_patients/low_risk_patient.json

That's it! Skip to Pattern 1: CDS Hooks.

The batch screening pattern queries patients from a FHIR server. This tutorial uses Medplum (a free, hosted FHIR server), but any FHIR R4-compliant API works - just swap the credentials.

1. Configure FHIR Credentials

Add Medplum credentials to your .env file. See FHIR Sandbox Setup for details:

MEDPLUM_BASE_URL=https://api.medplum.com/fhir/R4
MEDPLUM_CLIENT_ID=your_client_id
MEDPLUM_CLIENT_SECRET=your_client_secret
MEDPLUM_TOKEN_URL=https://api.medplum.com/oauth2/token
MEDPLUM_SCOPE=openid

2. Extract and Upload Demo Patients

# Set MIMIC-on-FHIR path (or use --mimic flag)
export MIMIC_FHIR_PATH=/path/to/mimic-iv-on-fhir

# Extract and upload to Medplum
cd scripts
python extract_mimic_demo_patients.py --minimal --upload

This script:

• Loads patient data from MIMIC-IV on FHIR
• Runs the sepsis model to find high/moderate/low risk patients
• Creates minimal FHIR bundles with only the observations needed
• Uploads them to your Medplum instance as transaction bundles

3. Copy Patient IDs

After upload, the script prints server-assigned patient IDs:

✓ Uploaded to Medplum!

Copy this into sepsis_fhir_batch.py:

DEMO_PATIENT_IDS = [
    "702e11e8-6d21-41dd-9b48-31715fdc0fb1",  # high risk
    "3b0da7e9-0379-455a-8d35-bedd3a6ee459",  # moderate risk
    "f490ceb4-6262-4f1e-8b72-5515e6c46741",  # low risk
]

Copy these IDs into the DEMO_PATIENT_IDS list in sepsis_fhir_batch.py.

Generate More Patients

The script has options for generating larger test sets:

python extract_mimic_demo_patients.py --help

# Examples:
--num-patients-per-risk 5   # 5 patients per risk level (15 total)
--seed 123                   # Different random sample
--minimal                    # Keep only latest observation per feature (~12KB each)

Alternative: Manual Upload

If you prefer, run without --upload to generate bundle JSON files, then upload them manually via the Medplum → Batch page.

---

Setup complete! You should now have:

• ✅ A trained model at cookbook/models/sepsis_model.pkl
• ✅ Demo patient data (local JSON or uploaded to Medplum)

If using the FHIR Gateway pattern, also confirm:

• ✅ FHIR credentials in .env
• ✅ Patient IDs copied into DEMO_PATIENT_IDS in sepsis_fhir_batch.py

The Shared Model Pipeline

Both patterns reuse the same pipeline. Here's what you'll write:

def create_pipeline() -> Pipeline[Dataset]:
    pipeline = Pipeline[Dataset]()

    @pipeline.add_node
    def impute_missing(dataset: Dataset) -> Dataset:
        dataset.data = dataset.data.fillna(dataset.data.median(numeric_only=True))
        return dataset

    @pipeline.add_node
    def run_inference(dataset: Dataset) -> Dataset:
        features = dataset.data[feature_names]
        probabilities = model.predict_proba(features)[:, 1]
        dataset.metadata["probabilities"] = probabilities
        return dataset

    return pipeline

The pipeline operates on a Dataset, which you create from a FHIR bundle:

dataset = Dataset.from_fhir_bundle(bundle, schema=SCHEMA_PATH)

How does FHIR become a DataFrame? The schema maps FHIR resources to your training features:

# sepsis_vitals.yaml (excerpt)
features:
  heart_rate:
    fhir_resource: Observation
    code: "220045"  # MIMIC chartevents code
  wbc:
    fhir_resource: Observation
    code: "51301"   # MIMIC labevents code
  age:
    fhir_resource: Patient
    field: birthDate
    transform: calculate_age

No FHIR parsing code needed—define the mapping once, use it everywhere.

Explore Interactively

Step through the full flow in notebooks/fhir_ml_workflow.ipynb: FHIR bundle → Dataset → DataFrame → inference → RiskAssessment.

Now let's see how this pipeline plugs into each deployment pattern.

---

Pattern 1: Real-Time CDS Hooks Alerts

Use CDS Hooks when you need instant alerts during clinical workflows. The EHR triggers your service and pushes patient data via prefetch—no server queries needed.

How It Works

Clinician opens chart → EHR fires patient-view hook → Your service runs prediction → CDS card appears in EHR

Set Up the CDS Hook Handler

Create a CDSHooksService that listens for patient-view events:

from healthchain.gateway import CDSHooksService
from healthchain.fhir import prefetch_to_bundle
from healthchain.models import CDSRequest, CDSResponse
from healthchain.models.responses.cdsresponse import Card

cds = CDSHooksService()

@cds.hook("patient-view", id="sepsis-risk")
def sepsis_alert(request: CDSRequest) -> CDSResponse:
    if not request.prefetch:
        return CDSResponse(cards=[])

    # FHIR prefetch → Dataset → Prediction
    bundle = prefetch_to_bundle(request.prefetch)
    dataset = Dataset.from_fhir_bundle(bundle, schema=SCHEMA_PATH)
    result = pipeline(dataset)

    # Generate alert card if risk is elevated
    prob = float(result.metadata["probabilities"][0])
    risk = "high" if prob > 0.7 else "moderate" if prob > 0.4 else "low"

    if risk in ["high", "moderate"]:
        return CDSResponse(cards=[
            Card(
                summary=f"Sepsis Risk: {risk.upper()} ({prob:.0%})",
                indicator="critical" if risk == "high" else "warning",
                detail=f"Predicted sepsis risk: {risk.upper()}. Recommend workup.",
                source={"label": "HealthChain Sepsis Predictor"},
            )
        ])

    return CDSResponse(cards=[])

Build the Service

Register with HealthChainAPI:

app = HealthChainAPI(title="Sepsis CDS Hooks")
app.register_service(cds, path="/cds")

Test with Sandbox Client

The SandboxClient simulates EHR requests using your demo patient files:

from healthchain.sandbox import SandboxClient

client = SandboxClient(
    url="http://localhost:8000/cds/cds-services/sepsis-risk",
    workflow="patient-view",
)
client.load_from_path("data/mimic_demo_patients", pattern="*_patient.json")
responses = client.send_requests()
client.save_results(save_request=True, save_response=True, directory="./output/")

Expected Output

Processed 3 requests
  Patient 1: Sepsis Risk: HIGH (85%)
  Patient 2: Sepsis Risk: MODERATE (52%)
  Patient 3: Low risk (no alert)

Example CDS Response

{
  "cards": [
    {
      "summary": "Sepsis Risk: HIGH (85%)",
      "indicator": "critical",
      "source": {
        "label": "HealthChain Sepsis Predictor",
        "url": "https://www.sccm.org/SurvivingSepsisCampaign/Guidelines/Adult-Patients"
      },
      "detail": "**AI Guidance:**\n- Predicted risk: **HIGH** (85%)\n- Recommend sepsis workup and early intervention.",
      "title": "Sepsis Alert (AI Prediction)"
    }
  ]
}

---

Pattern 2: Batch FHIR Gateway Screening

Use the FHIR Gateway when you need to screen multiple patients from a FHIR server. Unlike CDS Hooks (ephemeral alerts), this pattern persists predictions back to the FHIR server as RiskAssessment resources, making them available for dashboards, reports, and downstream workflows.

How It Works

Query patients from FHIR server → Run predictions → Write RiskAssessment back to FHIR server

Set Up FHIR Gateway

Configure the FHIRGateway with your FHIR source:

from fhir.resources.patient import Patient
from fhir.resources.observation import Observation
from healthchain.gateway import FHIRGateway
from healthchain.gateway.clients.fhir.base import FHIRAuthConfig
from healthchain.fhir import merge_bundles

gateway = FHIRGateway()
config = FHIRAuthConfig.from_env("MEDPLUM")
gateway.add_source("medplum", config.to_connection_string())

Screen Individual Patients

Query patient data, run prediction, and write back a RiskAssessment resource:

def screen_patient(gateway: FHIRGateway, patient_id: str, source: str):
    # Query patient + observations from FHIR server
    patient_bundle = gateway.search(Patient, {"_id": patient_id}, source)
    obs_bundle = gateway.search(Observation, {"patient": patient_id}, source)
    bundle = merge_bundles([patient_bundle, obs_bundle])

    # FHIR → Dataset → Prediction
    dataset = Dataset.from_fhir_bundle(bundle, schema=SCHEMA_PATH)
    result = pipeline(dataset)

    # Convert to RiskAssessment and write back
    for ra in result.to_risk_assessment(
        outcome_code="A41.9",
        outcome_display="Sepsis",
        model_name="sepsis_xgboost_v1",
    ):
        gateway.create(ra, source=source)

Batch Screen Multiple Patients

Loop over patient IDs and screen each one:

for patient_id in patient_ids:
    screen_patient(gateway, patient_id, source="medplum")

Demo vs Production

This demo uses a fixed list of patient IDs. In production, you'd query for patients dynamically—for example, ICU admissions in the last hour:

# Find patients with recent ICU encounters
encounters = gateway.search(
    Encounter,
    {
        "class": "IMP",  # inpatient
        "location": "icu",
        "date": "ge2024-01-01",
    },
    source="ehr"
)
patient_ids = [e.subject.reference.split("/")[1] for e in encounters]

Build the Service

app = HealthChainAPI(title="Sepsis Batch Screening")
app.register_gateway(gateway, path="/fhir")

Expected Output

After uploading demo patients to Medplum and running batch screening:

=== Screening patients from Medplum ===
  702e11e8-6d21-41dd-9b48-31715fdc0fb1: HIGH (85%) → RiskAssessment/abc123
  3b0da7e9-0379-455a-8d35-bedd3a6ee459: MODERATE (52%) → RiskAssessment/def456
  f490ceb4-6262-4f1e-8b72-5515e6c46741: LOW (15%) → RiskAssessment/ghi789

You should be able to see the RiskAssessment resources in the Medplum console (search for "RiskAssessment" in "Resource Type" search bar in top left corner)

Example RiskAssessment Resource

{
  "resourceType": "RiskAssessment",
  "id": "abc123",
  "status": "final",
  "subject": {
    "reference": "Patient/702e11e8-6d21-41dd-9b48-31715fdc0fb1"
  },
  "method": {
    "coding": [{
      "system": "https://healthchain.io/models",
      "code": "sepsis_xgboost_v1",
      "display": "Sepsis XGBoost Model v1"
    }]
  },
  "prediction": [{
    "outcome": {
      "coding": [{
        "system": "http://hl7.org/fhir/sid/icd-10",
        "code": "A41.9",
        "display": "Sepsis"
      }]
    },
    "probabilityDecimal": 0.85,
    "qualitativeRisk": {
      "coding": [{
        "system": "http://terminology.hl7.org/CodeSystem/risk-probability",
        "code": "high",
        "display": "High likelihood"
      }]
    }
  }]
}

---

What You've Built

Two deployment patterns for the same ML model:

	CDS Hooks	FHIR Gateway
Integration	Event-driven (EHR pushes data)	Pull-based (service queries server)
Latency	Real-time (<1s)	Batch (seconds to minutes)
Output	CDS Cards (ephemeral alerts)	RiskAssessment (persisted resources)
Scaling	Per-patient on demand	Parallel/scheduled batch jobs

Both patterns:

• Share the same model - Train once, deploy multiple ways
• Use YAML feature schemas - Declarative FHIR → features mapping
• Handle FHIR natively - No custom data wrangling per integration

Use Cases

CDS Hooks (Real-time)

• Sepsis early warning alerts when opening ICU patient charts
• Drug interaction warnings during medication ordering
• Clinical guideline reminders triggered by diagnosis codes

FHIR Gateway (Batch)

• Nightly population health screening
• Quality measure calculation for reporting
• Research cohort identification
• Pre-visit risk stratification

Next Steps

• Train your own model: Replace sepsis_model.pkl with your model; update the feature schema to match
• Add more features: Extend sepsis_vitals.yaml with lab values, medications, or other Observations
• Add more FHIR sources: The gateway supports multiple sources—see the cookbook script for Epic sandbox configuration, or the FHIR Sandbox Setup guide
• Automate batch runs: Schedule screening jobs with cron, Airflow, or cloud schedulers; or use FHIR Subscriptions to trigger on new ICU admissions (PRs welcome!)
• Combine patterns: Use batch screening to identify high-risk patients, then enable CDS alerts for those patients
